handheld portable digital vibration meter MS63A

Name: handheld portable digital vibration meter MS63A
Brand: MASUR
Price: 1 USD

Buy cheap handheld portable digital vibration meter MS63A product

Place of Origin : Shenzhen.China

Brand Name : MASUR

Certification : CE,ROHS

Model Number : MS63A

LCD display : 3 1/2 digits display

MOQ : 1pc

Packaging Details : PP box + Gift Box

Delivery Time : 7-25 DAYS

Payment Terms : T/T, Western Union,Cash

Supply Ability : 5000 Piece/Pieces per Month

Power : Electronic

Usage : Vibration Testing Machine

Contact Now

Handheld Portable Digital Vibration Meter - MS63A

A. Introduction

handheld portable digital vibration meter MS63A

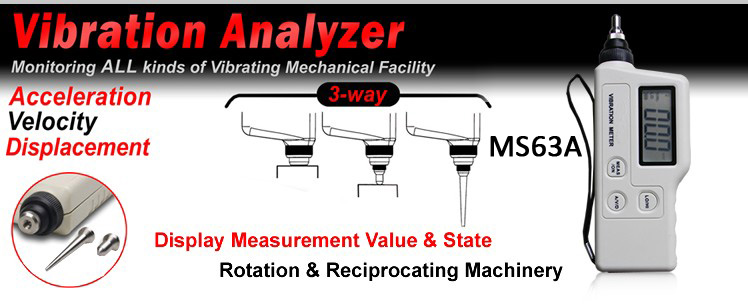

This product adopts piezoelectric effect of artificial posarized ceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc.

B. Features:

1. Acceleration, velocity and displacement measurement

2. Different vibration frequency selection

3. High sensitivity probe for accurate measurement Provides long and short probe head, each one is suitable for different situation measurement

4. Equipped with AC signal output interface

C. Specification

Technical parameter	Technical specicication
Vibration pickup	Piezoeletric ceramic accelerometer (shear-type)
Measurement range of acceletation	0.1~199.9m/s² peak
Measurement range of acceleration	0.1~199.9mm/s rms
Measurement range of displacement	0.001~1.999mm p-p Velocity and displacement range is limited by acceleration 199.9m/s²
Measurement accurace	+-5% +-2digits
Measurement frequency range of acceleration	10Hz~1KHz (LO) 1KHz~15KHz(HI)
Measurement frequency range of velocity	10Hz~1KHz (LO)
Measurement frequency range of displacement	10Hz~1KHz (LO)
Displays update cycle	1 second
LCD display	3 1/2 digits display
Single output	AC output 2V peak (display full scale) Load impedance
Power supply	9V Alkaline battery
Static current	≤20 uA
Operating current	≤25 mA
Battery life	20 hours continuous use
Auto power-off	Turns off automatically in 60 seconds
LCD backlight	7 seconds
Operating temperature range	0~40°C
Operating humidity range	30~90%RH
Low battery indication	6.9V +-0.2V
Dimensions	67x30x183mm
Weight	182g (including battery)

D. Packing information

Packing: Gift box + PP box

Standard Quantity Per Carton: 20pcs

Standard Carton Sise: 66.9x45.8x30.7CM

Standard Carton Gross Weight: 16.5KG
